Gauge Disc Cutter

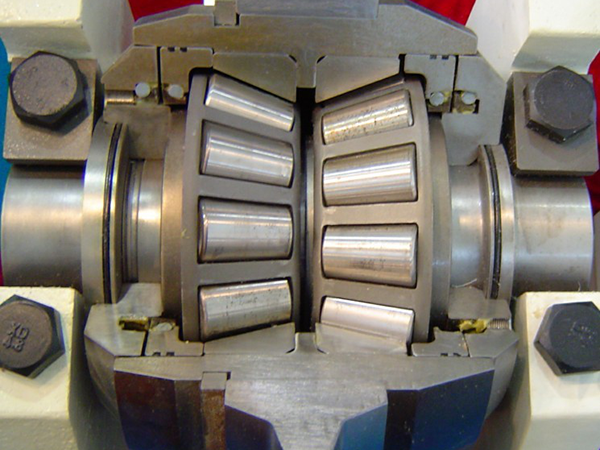

- TIMKEN tapered roller bearing with rigorous assembling process ensures high reliability, high bearing capacity and long service life of disc cutters.
- PROTEC/GIANT floating sealing system with high wear and heat resistance combining with strict air tight test ensures good sealing performance of disc cutters.
- We have developed several cutter ring materials and designed a variety of cutting edges and mounting types for different geological conditions.
- We design tungsten carbides in different shapes, sizes and grades according to geology in order to increase cutters life.
|

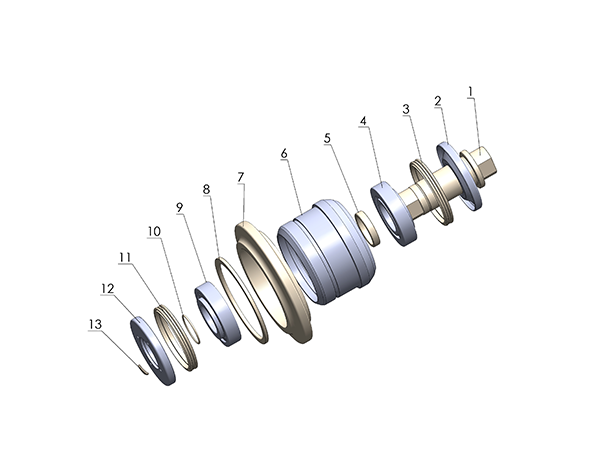

Part No. |
Part Name |
Part No. |
Part Name |
|
1 |
Shaft |
8 |
Split Ring |
|
2 |
Shaft Retainer A | 9 |
Bearing |
|
3 |
Floating Seal | 10 |
"O" Ring |
|
4 |
Bearing | 11 |
Floating Seal |
|
5 |
Bearing Spacer | 12 |
Shaft Retainer B |
|
6 |
Hub | 13 | Backstop Ring |
|
7 |
Cutter Ring |
